Mixing and Blending Equipments

Blending is the basic of nature and life. This method is essential for any kind of food and pharma industry. Different methods of blending are implemented, according to the nature of raw material, size, and density. Based on method and application, they are named as Ribbon Blender, Cone Blender, Paddle Blender etc. Mostly all Blenders are fabricated with contact metal Stainless Steel 304 grade, unless asked for other materials. Timer and counter fixing in Panel Board also can improve the consistency between the batches.

Turbo Jet Blender

This machine is specially developed for blending different types of powders with liquids or semi solids with out lump formation or spillage loss to the liquid ingredients. Turbo jet blender is provided with a high speed turbine and a pressure vessel for blending liquids/semi solids evenly to the powder ingredients.
10-3000 kg/batch
0.25- 20 HP
Blending of powders with liquids or semi solids.
Food,spices,ayurvedic and chemical industry
Contact parts in SS, remaining in MS

+91 9526911112

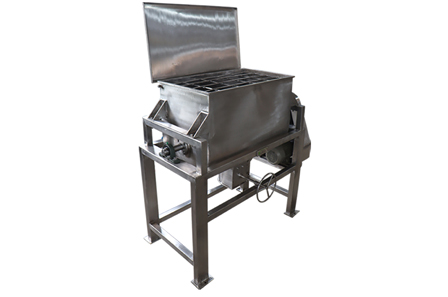

Ribbon Blender

Ribbon blenders are used for blending powders of similar physical properties. Ribbon blender comprises of a ‘U’ trough mounted on rigid frame. Raw materials fed to the machine are moved left and right and upside down by the ribbons, which results in blending of the product
10 – 3000kg/batch
0.25- 20 HP
Blending of powders
Food, spices, feed and chemical industries
Contacts parts in SS, remaining in MS

+91 9526911112

'O' Trough Blender

In an 'O' trough blender material moves radially inside the vessel. The 'O' trough blenders are approximately 25% more expensive than 'U' trough blender. But this design ensures demounting of high moisture of non flowing powders on its side walls
10 – 3000kg/batch
0.25- 20 HP
Blending of powders
Food,spices and chemical industries
Contacts parts in SS, remaining in MS

+91 9526911112

Double Cone Blender

Double cone blender is an efficient and simple equipment for mixing dry powders and granules homogenously. It can also be used to mix powders of different moisture level. Removable lids are provided for easy feeding, discharging and cleaning
10 - 250 kg/batch
0.25 – 5 HP
Blending
Food,beverages and ayurvedic industries
Contact parts in SS(AISI 304) and remaining in MS

+91 9526911112

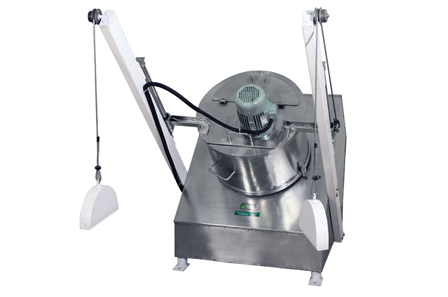

Finger blender

Finger Blenders is used for soft blending of light flakes or similar products. Main working parts are rotary drum, rotating shaft fixed with stirrers and an easily removable lid. The products blended in this equipment posses extremely good texture and appearance.
5-50kg/batch
0.25- 3 HP
Blending of soft products
Food,ayurvedic & chemical industry
Contacts parts in SS, remaining in MS

+91 9526911112

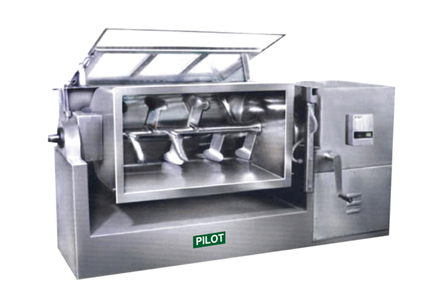

Mass Mixer

Mass mixers are ideal for mixing powders with semi solids. Compared to other blenders, the power of motor will be higher in mass mixers. Two types of mass mixers are available in different capacities of handling, namely single trough mass mixer and double trough mass mixer. Double trough mass mixer is 75% expensive than single trough mass mixer, but mixing is faster and handles high volumes easily.
10 – 500 kg/batch
1 – 30 HP
Mixing
Food industry, ayurvedic industry, pharmaceutical industry
Fully in AISI 304 SS

+91 9526911112

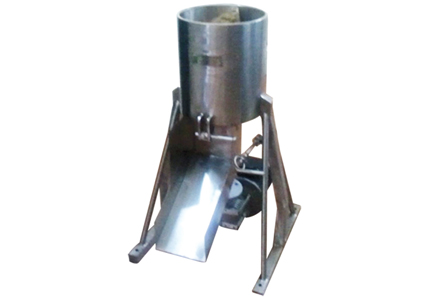

Vertical Ribbon Blender

Vertical ribbon blender is recommended where we need faster blending in small batches. The raw material from the bottom of the vessel is lifted up and down by the rotary movement of the spiral ribbons. The ribbons placed in vertical position can be easily removed before cleaning. This blender can mix batches as small as 25% of vessel capacity
10-250 kg/batch
0.5-7.5 HP
Blending
Food,spices and chemical industries
Contact parts in SS, remaining in MS

+91 9526911112

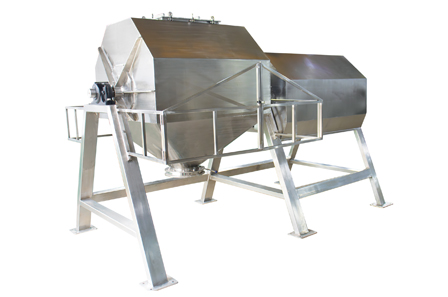

Octogonal blender

Octogonal blender is an efficient and versatile blending machine for mixing dry herbs/granules/chips homogenously.It is generally used for bulk volume blending. The effective blending is ennsured by the vertical spirals on the cone and horizontal spirals within the shell.
250 - 2500 kg/ batch
5 - 20 HP
Blending
Ayurvedic, pharmaceutical and chemical industries
Contact parts in SS (AISI 304). remaining in MS

+91 9526911112

Y blender

Y blenders are used for smooth and gentle blending of dense powders and abrasive materials.The material comes at a common point and then splits to separate sections, it also tumbles inside the vessel making the product homogenous.
50- 1000 kg/ batch
1.5 - 12 HP
Blending
Silica or abrasive mixing industries
Contact parts in SS (AISI 304), remaining in MS

+91 9526911112

Ointment Mixing Unit

The unit comprises of a stainless steel vessel fitted with a fixed slow speed stirrer. The raw material gets prepared inside the vessel. This equipment is used for mixing semi solids.
50 kg/hr
1 HP
Preparation of ointment
Pharmaceutical and ayurvedic industry
Contacts parts in SS, remaining in MS

+91 9526911112
