Cleaning and Grading machines

We have different types of cleaning and grading machines which is suitable for different types of raw materials. This cleaning and grading system takes care of removing impurities like dust, stones, over size and under size particles in the raw material. Aspiration system with cyclone collector is provided in certain cases to separate lighter dust particles and also minimizes the spillage. Different types of sieves are provided for grading machines, to collect required size raw material from the bulk. There is option for machinery having contact parts with carbon steel and stainless steel.
For liquids we have vacuum filters, pressure filters and centrifuges.

Cocoa bean breaker

This machine is used for breaking of cocoa bean shell
20 – 100 Kg/ hr
0.5 HP
Breaking
Cocoa processing industry
Contacts parts in SS, remaining in MS

+91 9526911112

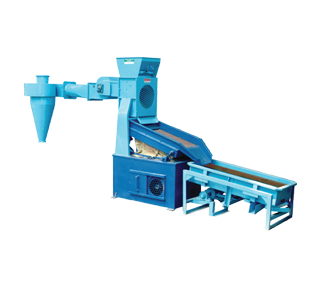

De-stoner with Aspirator

It is a combination of three equipments namely aspirator with cyclone separator, de-stoner and shaker. Each equipment can act independently or in groups according to the type of impurities to be removed. Accuracy of cleaning is above 97%.
150-1000 Kg/ hr.
2 – 7.5 HP.
To remove impurities from the cereals, grains, spices, etc.
Food, spices and Ayurvedic processing industry
MS or SS

+91 9526911112

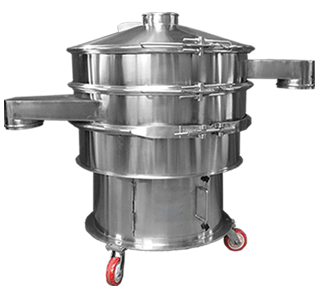

Vibro Sifter

Vibro sifter is used for grading powders of different particle size. This can be achieved by placing additional deck one over the other of different mesh size
50 – 1000 kg/hr
0.25- 2 HP.
Grading of powders
Food and Spices industry
Contacts parts in SS, remaining in MS

+91 9526911112

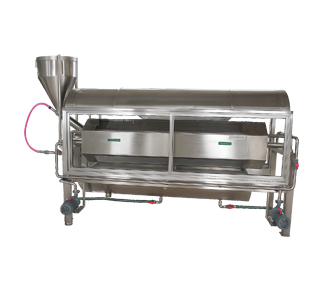

Continuous Rice Washer

Continuous rice washer is used for washing rice or similar materials in bulk quantity. Water sprayed continuously into the chamber, removes the impurities from the raw material
1250 Kg/ hr.
3 HP.
To remove impurities from rice, wheat etc.
Food processing industry
Contacts parts in SS, remaining in MS.

+91 9526911112

Huller

Huller is used for de husking and polishing of coffee, paddy and similar types of beans and grains. Accuracy of separation is around 90%. A fan box separates seed from the husk.
5 – 50 kg /hr
0.5 – 2 HP
De-husking and polishing of paddy,coffee and similar type of beans and grains
food and spice industry
Fully in SS

+91 9526911112

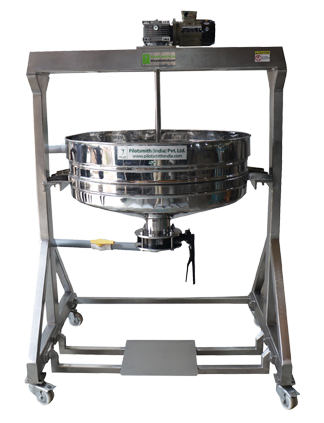

Rice Washer

The machine removes floating impurities, sand particles below 800 microns, dust and other washable impurities. It is also used for soaking rice to the required level of moisture and rinsing the excess water. It consists of a perforated vessel with stirrers. The washed material can be kept in the same vessel for soaking. Then it is rinsed and discharged through bottom for further processing.
50 to 250 kg/batch
0.25-1.5 HP
Washing
wheat, ragi, dried grapes, dates etc
Contact parts in SS(AISI 304),remaining in MS

+91 9526911112

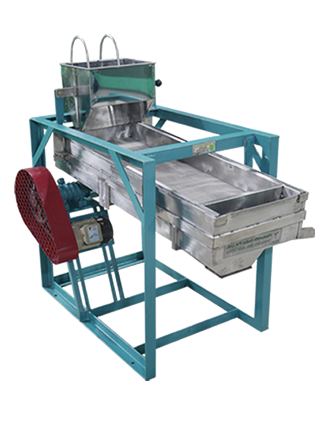

Square sifter

It separates powder of required micron size from the bulk. An eccentric shaft reciprocates the rectangular sieve resulting in this separation
200 to 500 kg/batch
0.5 – 3 HP
Sorting
Curry powder unit, rice flour unit, wheat flour unit, ayurvedic industry.
MS

+91 9526911112

Testa remover

It is a machine used for removing testa from coconut.
50 units/hr
1 HP
Removing testa
Coconut processing units
Fully in MS

+91 9526911112

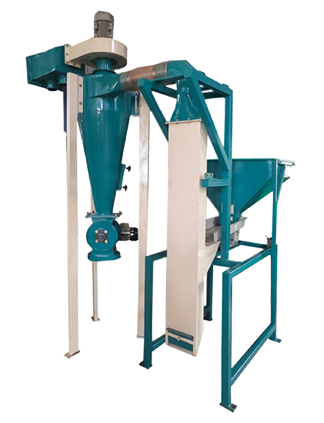

Winnower

This machine is used for winnowing shell from cocoa butter
20 – 100 Kg/ batch
0.5 HP
Winnowing
Cocoa processing industry
Contacts parts in SS, remaining in MS

+91 9526911112

Plate Nad Frame Filter

No Spec Available

+91 9526911112

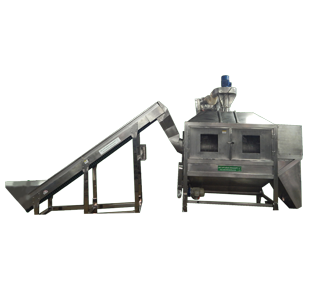

Chilly Cleaner

Pilot chilly cleaner is used for removing excess loose chilly rice, stem, stone and dust from chilly. This machine can also be used for cleaning turmeric to a certain extent.
1000 kg/hour
2 HP
Cleaning
Chilly processing units
MS

+91 9526911112
